How to Measure Your Factory Chevy Bowtie Emblem for the Correct Replacement SizeUpdated a month ago
Follow This Guide To Ensure You Purchase The Correct Size Replacement The First Time
Before ordering a replacement Chevy bowtie emblem, it is important to measure your factory emblem correctly. Front and rear Chevy emblems are often different sizes, so taking a few quick measurements can help ensure you purchase the correct replacement the first time.
Quick Answer
Measure the physical bowtie emblem itself — not the grille opening or recessed area around it. Measure the total width from tip to tip and the maximum height from the highest point to the lowest point.

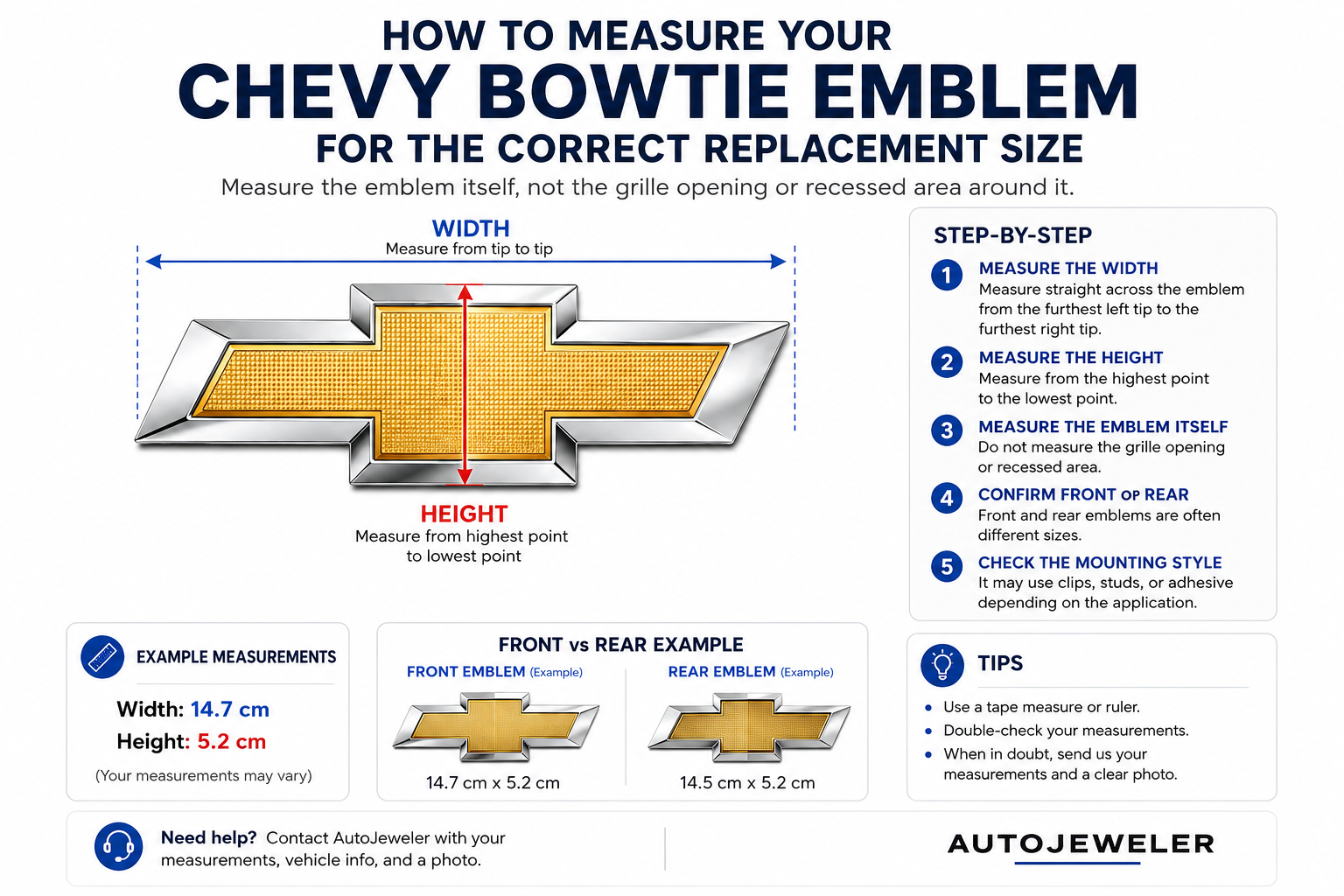

Example Measurement Diagram
Use the example below as a visual reference. Your factory emblem may vary depending on year, make, model, trim, and location on the vehicle.
Example only: measure the emblem itself from the widest left and right points, and from the highest to lowest points.
What You Need
- A tape measure or ruler
- Your vehicle’s year, make, model, and trim (recommended)
- A photo of your current emblem and grille (helpful if you need fitment assistance)
Step-by-Step: How to Measure Your Chevy Bowtie Emblem
Step 1: Measure the Width
Measure straight across the emblem from the furthest left tip to the furthest right tip. This gives you the total width of the bowtie emblem.
Step 2: Measure the Height
Measure from the highest point of the emblem to the lowest point. This gives you the maximum overall height.
Step 3: Measure the Emblem Itself
Do not measure the grille opening, cutout, recessed area, or surrounding trim. For proper fitment, you must measure the actual physical bowtie badge itself.
Step 4: Confirm Front or Rear
Always verify whether you are replacing the front grille emblem or the rear tailgate/liftgate emblem. These are often different sizes and may use different mounting styles.
Step 5: Check the Mounting Style
If possible, inspect how the emblem mounts. Depending on the application, it may attach using:
- Alignment clips or tabs
- Threaded studs with nuts
- Adhesive backing or peel-and-stick tape
Example Measurement Format
Once measured, your dimensions may look something like this:
Width: 14.7 cm
Height: 5.2 cm
Common Mistakes to Avoid
- Measuring the grille opening instead of the emblem
- Assuming the front and rear bowties are the same size
- Ordering based only on vehicle year without confirming dimensions
- Not checking the mounting style before ordering
Need Help Confirming Fitment?
If you are unsure which emblem fits your vehicle, send us the following information:
- Year
- Make
- Model
- Trim level
- Front or rear emblem
- Your measurements
- A clear photo of your current grille and emblem
Frequently Asked Questions
Q. Do I measure the grille opening or the emblem itself?
A. Measure the emblem itself, not the opening around it.
Q. Are front and rear Chevy bowtie emblems the same size?
A. Not always. In many applications, the front and rear emblems are different sizes and may mount differently.
Q. What if I still am not sure which emblem I need?
A. Contact us with your vehicle information, measurements, and a photo of your existing emblem. We will do our best to help confirm compatibility before you order.
Q. Can I order without measuring?
A. We strongly recommend measuring first. This helps avoid ordering the wrong size, especially since fitment can vary by model, trim, and emblem location.
Still Need Help?
If you need help confirming the correct Chevy bowtie emblem for your vehicle, contact AutoJeweler with your measurements and vehicle details.
